An inkjet printer is a type of printer that produces high-quality text and images by spraying tiny droplets of liquid ink onto paper. It is commonly used in homes, schools, and offices because it is affordable, compact, and easy to use. Inkjet printers can print in both black-and-white and color, making them suitable for printing documents, photographs, charts, and graphics. They use ink cartridges filled with different colors such as cyan, magenta, yellow, and black to create detailed and colorful prints. Modern inkjet printers often include additional features like scanning, copying, and wireless printing. They are known for their good print quality, quiet operation, and ability to print on different types of paper, including glossy photo paper.

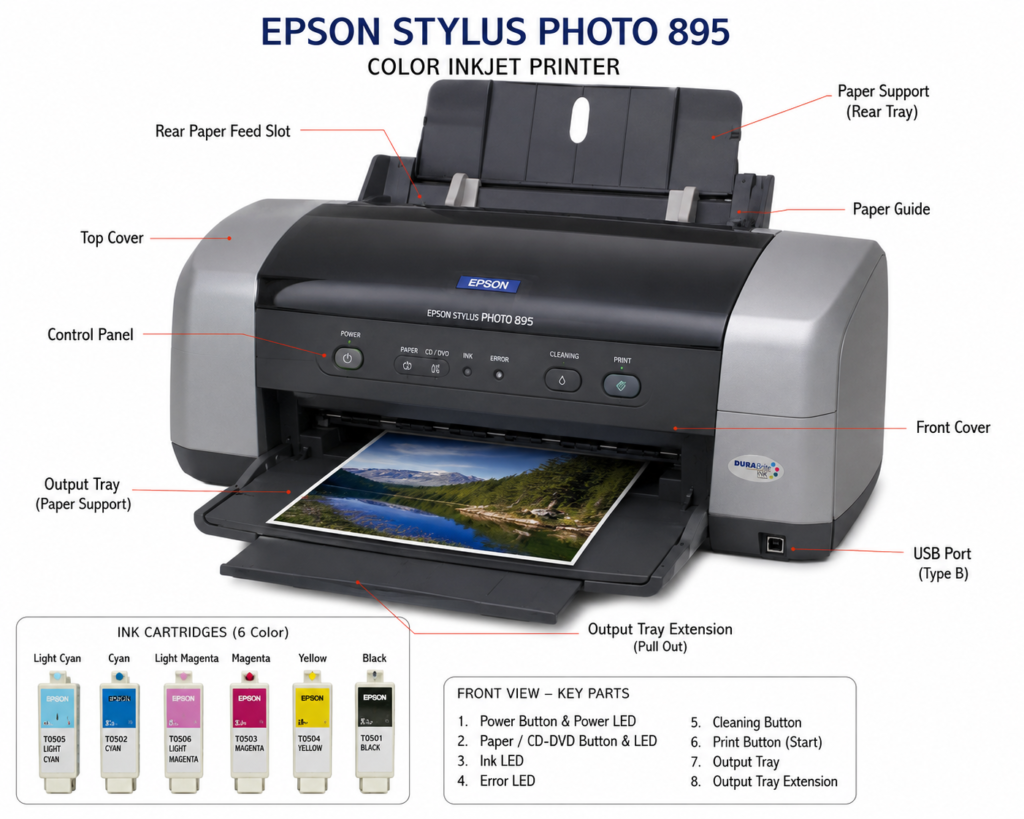

The Epson Stylus Photo 895 is a high-quality color inkjet printer designed mainly for photo printing and home use. It uses Epson’s piezoelectric inkjet technology to produce sharp text and detailed color images. The printer supports six-color printing with black, cyan, magenta, yellow, light cyan, and light magenta inks, allowing it to create smooth color gradients and realistic photographs. It can print at a maximum resolution of 2880 × 720 dpi and supports borderless photo printing on different paper sizes. One of its special features is the built-in PC card slot, which allows users to print photos directly from digital camera memory cards without using a computer. The printer also supports roll paper printing for panoramic photos and uses USB connectivity for computer connection. Its paper feed system, printhead, ink cartridges, and control panel work together to provide accurate and high-quality printing performance.

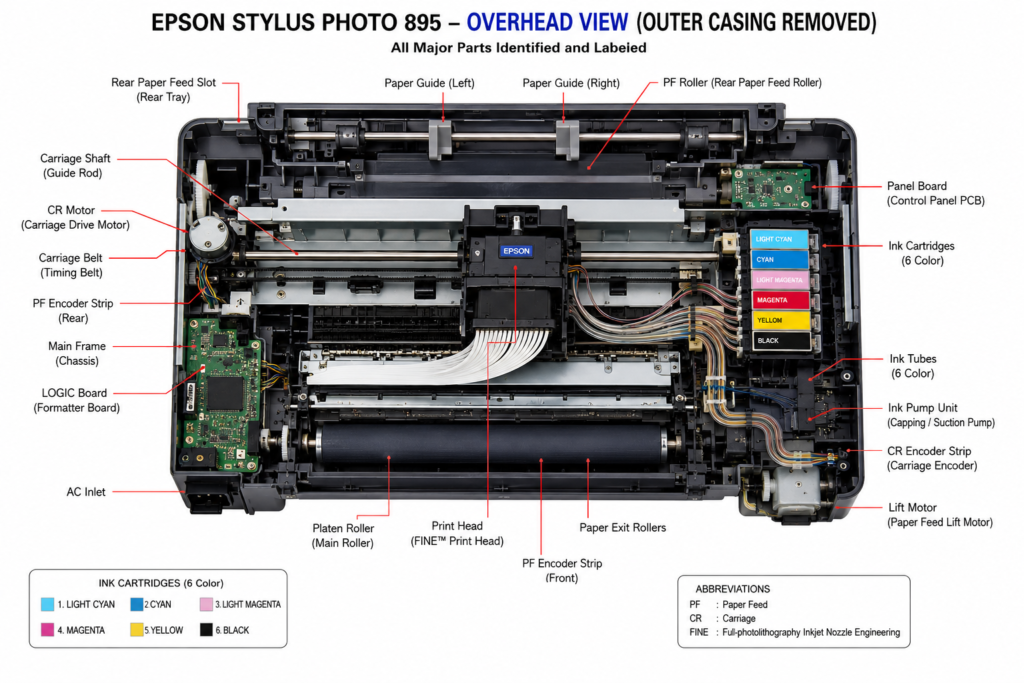

The overhead view with the outer casing removed shows the internal structure and major working parts of a printer from the top. This view helps users understand how the printer operates internally and how different components are connected. In the Epson Stylus Photo 895 printer, the internal parts visible include the carriage motor, carriage belt, printhead, ink cartridges, ink tubes, paper feed rollers, encoder strip, logic board, feed motor, gears, and paper exit rollers. The printhead moves side to side on the carriage shaft while spraying ink onto the paper. The paper feed system moves the paper through the printer during printing. The logic board controls all printer operations, and the motors and gears help move the carriage and rollers accurately. This overhead internal view is useful for studying printer design, maintenance, and troubleshooting.

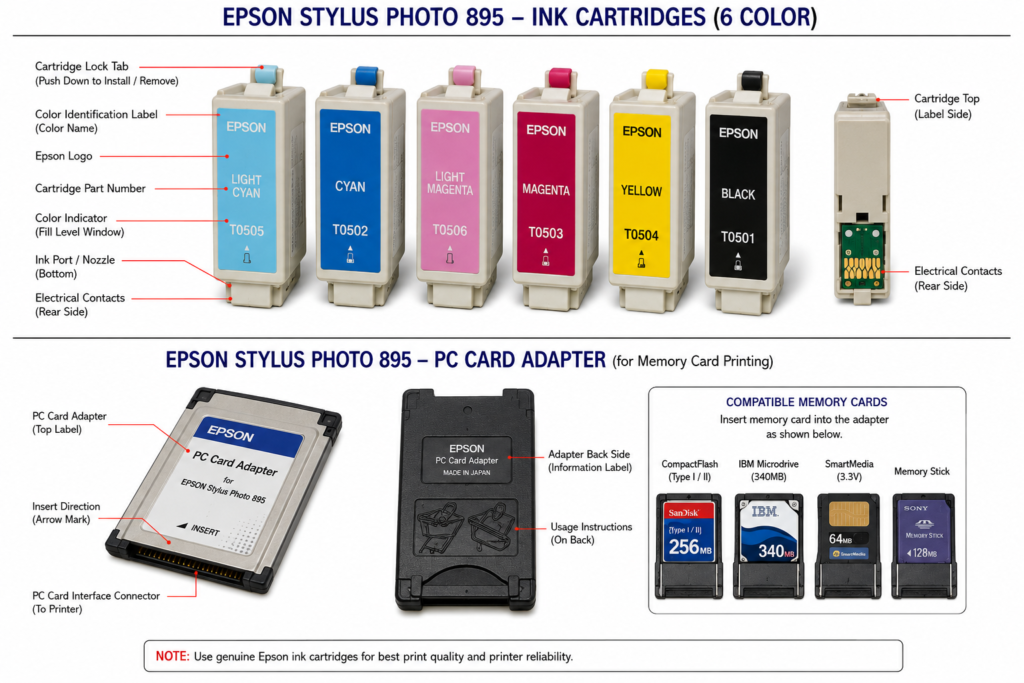

An inkjet cartridge is a replaceable container that holds liquid ink used by an inkjet printer to print text and images on paper. In printers such as the Epson Stylus Photo 895, the cartridges usually contain different colors like black, cyan, magenta, yellow, light cyan, and light magenta to produce high-quality color prints. Each cartridge has an ink outlet and electrical contacts that communicate with the printer. The printer sprays tiny droplets of ink from the cartridges through the printhead nozzles onto the paper. Ink cartridges are important because they supply the ink needed for clear and colorful printing.

A PC card adapter is a device used to connect memory cards directly to the printer for photo printing without using a computer. It allows users to insert compatible memory cards such as CompactFlash, SmartMedia, Memory Stick, or IBM Microdrive into the adapter. The adapter then connects to the printer so images stored on the memory card can be accessed and printed easily. This feature is useful for quick photo printing from digital cameras and portable storage devices.

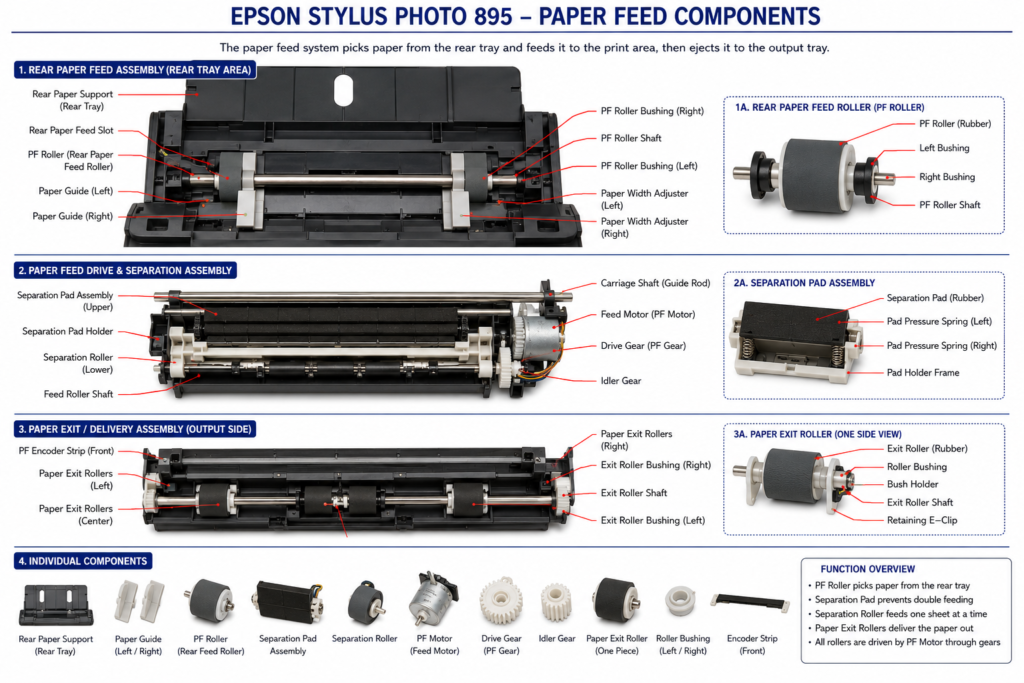

Paper feed components are the parts of a printer that help move paper smoothly from the input tray to the printing area and then out to the output tray. These components work together to ensure that only one sheet of paper is fed at a time and that the paper stays properly aligned during printing. The main paper feed components include the rear paper support, paper feed roller, separation pad, paper guides, feed motor, drive gears, paper exit rollers, and output tray. The paper feed roller pulls the paper into the printer, while the separation pad prevents multiple sheets from entering together. Paper guides keep the paper straight and correctly positioned. The feed motor and gears control the movement of the rollers, and the paper exit rollers push the printed paper out to the output tray. These components are important for accurate printing and smooth paper handling.

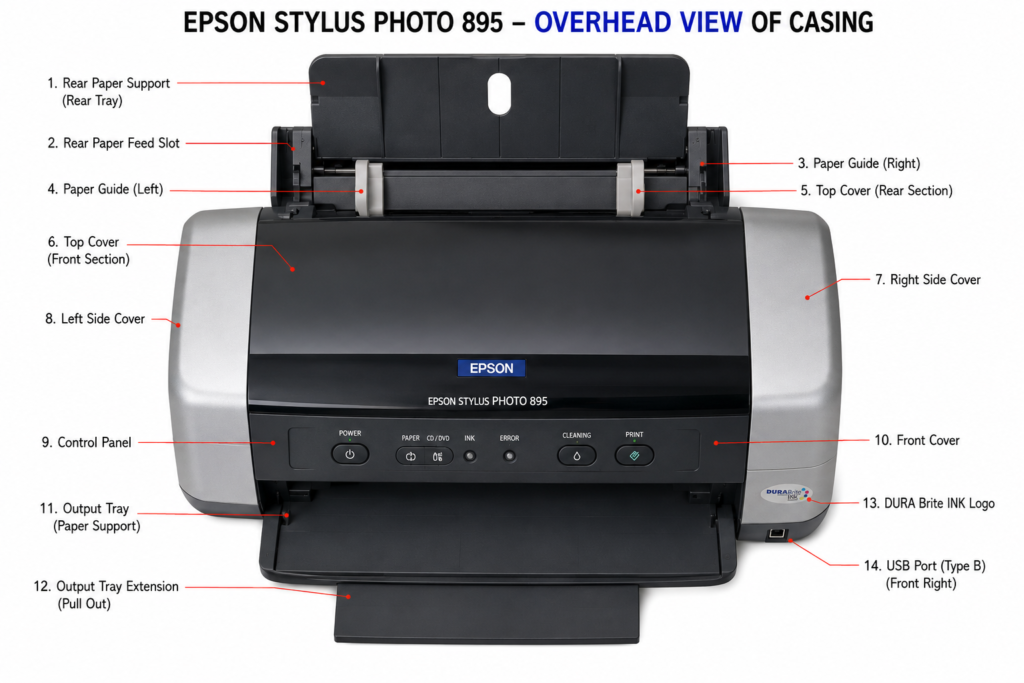

The overhead view of a printer casing shows the outer body and top layout of the printer from above. It helps users identify important external parts and understand how the printer is organized. In an Epson Stylus Photo 895 printer, the overhead casing view includes components such as the rear paper support, paper feed slot, paper guides, top cover, side covers, control panel, front cover, output tray, and USB port. The rear paper support holds the paper before printing, while the paper guides keep the paper aligned properly. The control panel contains buttons and indicator lights used to operate the printer. The output tray supports printed pages as they exit the printer. This view is useful for learning the names and locations of external printer parts and for basic maintenance or troubleshooting.

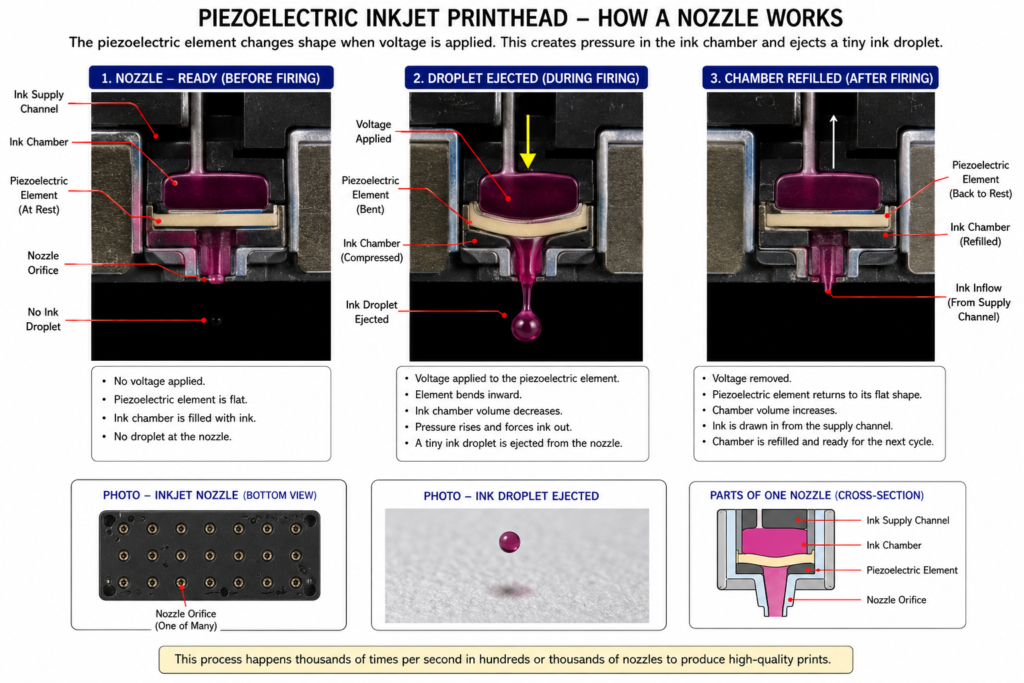

A piezoelectric inkjet printhead works by using tiny piezoelectric crystals to control the spraying of ink onto paper. Inside the printhead are many small ink chambers connected to microscopic nozzles. Each chamber contains a piezoelectric element that changes shape when an electric current is applied. When the printer sends a signal, the piezoelectric crystal bends or vibrates, creating pressure inside the ink chamber. This pressure forces a tiny droplet of ink out through the nozzle onto the paper. After the droplet is released, the crystal returns to its original shape, allowing more ink to flow into the chamber for the next print cycle. This process happens thousands of times per second to create text and images with high precision. Piezoelectric printheads are commonly used in Epson printers because they provide accurate droplet control, high print quality, fast printing speed, and support for different types of inks without using heat.
